Hello list, I’m curious, given Victor’s recent filter opcode additions, whether there is in a plugin or anywhere an emulation of the SEM filters used in Oberheim Matrix series synthesizers.
Or perhaps if someone knows of an open source implementation it would be a good “baby’s first filter opcode” project for me…
Not that I know much about vintage analog synths, but I'm a bit confused. Do you mean de CEM filters used in Oberheim Matrix serie, or the filters used in the Oberheim SEM? Or is it just my confusion?
Matrix 6 was based on the CEM3396 “synth on chip”, which had oscillators (well waveshapers), mixer, vcf and vca into one.
It’s pretty much the same used in the DSI Prophet 8 and REV2 (with an added audio in).
The filter in this has two options, 2 and 4 pole. The 4 pole is likely to be an OTA-based cascade of 1st order sections with feedback (basically the ladder filter realised with OTAs), but I don’t know if the 2 pole is just a tap on this or an SVF. Need to check the schematics if I can find them.
Prof. Victor Lazzarini
Maynooth University
Ireland
There’s loads of information about the original SEM in this video https://www.youtube.com/watch?v=jAokGV71MEw .
Though I’m not sure it would help for an opcode, other than saying “it’s a state variable filter”.
I’m not sure it is what you are looking for, but there are excellent Oberheim filter implementations in the Faust library : vaeffects - Faust Libraries
the first two are based on the Chamberlain design, the zdf is Steven’s coding of a delay-free loop design, and svn is an improvement on the Chamberlain filter, and can work with linear or non-linear behaviour.
Note that the “SEM filter” is actually a copy of the ARP2500 state variable filter. So we should give that attribution.
Prof. Victor Lazzarini
Maynooth University
Ireland
Is there a description somewhere of all the filters? There are so many different implementations of these in the library, and I’m never quite sure which are the best to use.
Hi Cian, yes there is but it doesn’t always match them up with their names in other circles (ie modular world).

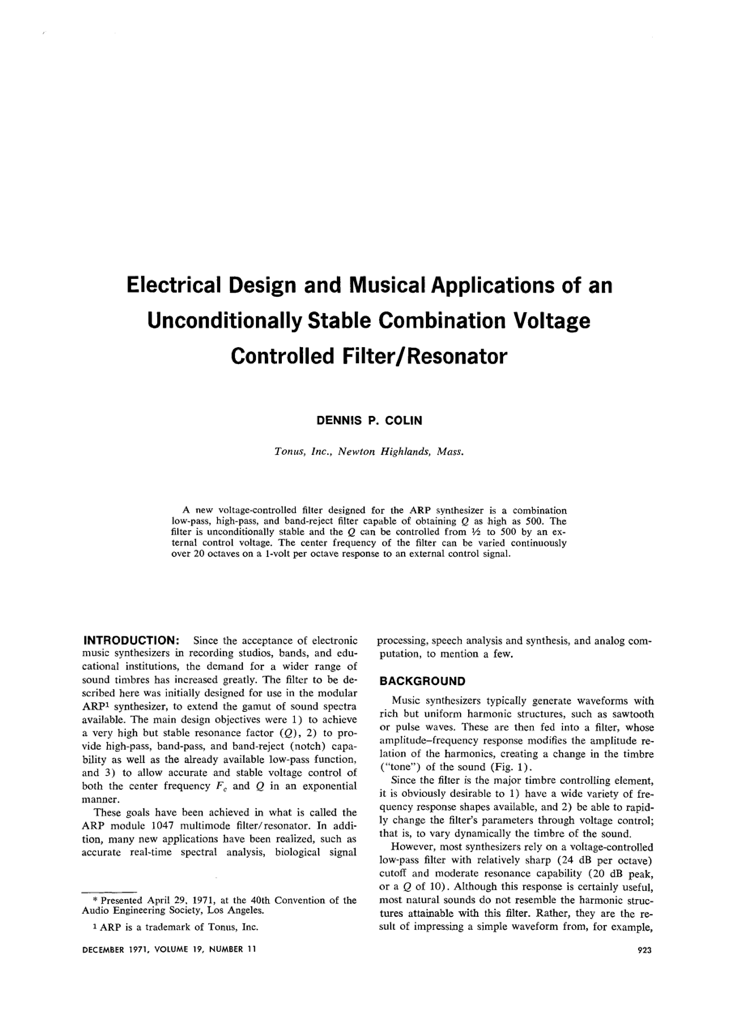

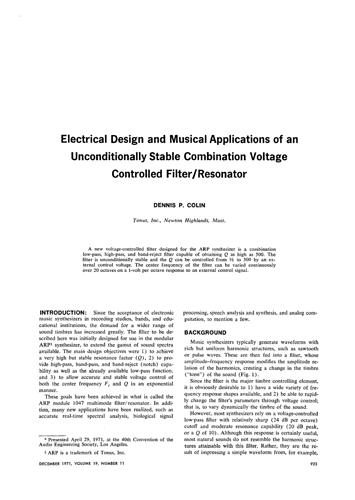

Victor, thanks for the paper! George Tzanetakis (my supervisor) and I are working on his course on a computer science perspective to synthesis, and these kind of resources are exactly what we try to collect. I uh, still have some maths to come up on before I can be truly useful as a filter hacker mind you…
Yes, George is great. He was my secondary for the masters and is now principal for the PhD, and we are both excited to share so many common interests! I am very fortunate to have him and Andy Schloss.
There’s that, but it’s also not always clear which emulations of a particular filter design are ‘better’. E.g. there are several Moog emulations of varying quality in the opcode catalog.
After our conversation here, I realised we did not have a dedicated non-linear OTA filer.
So i’ve added a new opcode to Csound 7.0: otafilter, modelling the ones in ICS such as the SSM2044, CEM3328, CEM3396 etc.
Like some newer synths, it has an added 2pole tap.
Not only would this give many Csounders access to some new opcodes, but they may discover some bugs for you to squash prior to the release (which I am guessing will be at the International Csound Conference in Vienna)
